GMC 20 ISM
GMC 20 ISM

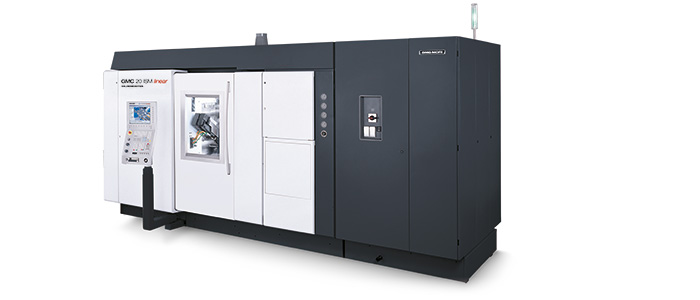

CNC数控6轴自动车床：拥有先进CNC数控技术的全部优点
.jpg)
GMC 20 ISM进入CNC数控多主轴机床的新领域。GMC 20 ISM的整体优势为该机提供全面生产能力，是灵活适应3-20 mm直径各种批量大小的车削加工要求的全新标杆机床。单分度主轴滚筒一项就能缩短周期时间。并且新开发的MF Programmer 3D软件进一步推动多主轴机床的成功。

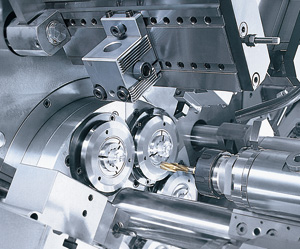

Highlights GMC 20 ISM
- 加工区与凸轮控制的机床类似，传统机床操作人员培训简单。
- 动态性能好和结构稳定，与机械式多主轴机床的周期时间等同。
- 6个带油冷独立的主轴电机
- 标配5个CNC复合中心架，切断刀架和背面加工刀架。

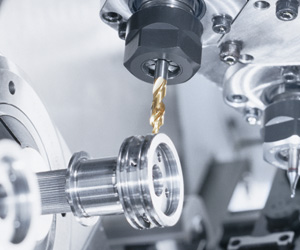

- 内径和外径加工精度高，公差H5
- 扭矩稳定的同步主电机
- 连续分度主轴滚筒，更大限度缩短非加工时间
- 排屑好，通过CNC数控导向架支撑工件
- DMG Programmer 3D Turning编程容易和程序无碰撞
.jpg)
.jpg)
技术参数
GMC 20 ISM
机床型号 |
|
GMC 20 ISM |
|
加工区 |
|
|
|
Max. bar passage |
mm |
20 |
|
Max. bar feed / component length |
mm |
120 |
|
Number of main spindles |
|
6 |
|
主轴环直径 |
mm |
180 |
|
Drum switching time |
mm |
0.7 |
|
Main spindle |
|
|
|
One drive for all six main spindles with C-axis (0.001°) |
rpm |
- |
|
Six integrated spindle motors (ISM) with C-axis (0.001°) |
rpm |
8,000 |
|
Drive power / Torque (40%) |
kW // Nm |
13.7 / 20.2 |
|
Frontal spindle* and pickup spindle |
|
|
|
Separate drive for each spindle position with C-axis (0.001°) |
rpm |
6,000 |
|
Drive power / Torque (40%) |
kW // Nm |
15.1 / 32.5 |
|
Frontal machining: frontal spindle positions 1-5 |
|
|
|
Frontal slide travel W1-W5 (standard) |
mm |
140 |
|
Frontal slide travel W1-W5 (high performance)* |
mm |
- |
|
Acceleration W1-W5 (standard / high performance) |
m/s2 |
10 |
|
Rapid traverse speed W1-W5 (standard / high performance) |
m/min |
30 |
|
Feed power W1-W5 (standard / high performance) |
kN |
3.1 |
|
U-axis* travel positions 4 and 5 (positions 1 to 5 from GMC 35 ISM) |
mm |
15 |
|
Rear-sided machining: pickup spindle, position 6 |
|
|
|
Front slide travel W6 |
mm |
140 |
|
Acceleration W6 |
m/s2 |
10 |
|
Rapid traverse speed W6 |
m/min |
30 |
|
Feed power W6 |
kN |
3.1 |
|
Driven* tools |
|
|
|
Number of driven tool axes (multiple tools can be used) |
Number / rpm |
6 / 6,000 |
|
Drive power / Torque (40%) |
kW // Nm |
1.8 / 2.9 |
|
Radial machining: cross slides, positions 1 to 5 |
|
|
|
Axis travel X1, X2, X3, X4, X5 |
mm |
55 |
|
Axis travel Z1, Z2, Z3, Z4, Z5 |
mm |
70 |
|
Acceleration X1-X5 / Z1-Z5 |
m/s2 |
10 |
|
Rapid traverse speed X1-X5 / Z1-Z5 |
m/min |
30 |
|
Feed power X1-X5 / Z1-Z5 |
kN |
3.1 / 3 |
|
Y-axes* travel (only possible for positions 3 to 5) |
mm |
- |
|
Rapid traverse speed Y3-Y5 |
m/min |
- |
|
Feed power Y3-Y5 |
– |
|
|
Radial machining: two lateral slides, position 6 |
|
|
|
X6 and U6 travel |
mm |
65 |
|
X6 and U6 acceleration |
m/s2 |
10 |
|
X6 and U6 rapid traverse speed |
m/min |
30 |
|
X6 and U6 feed power |
kN |
1.2 |
|
Z6* travel |
mm |
- |
|
Central block |
|
|
|
Central block* travel W7 |
mm |
100 |
|
Hydraulic bar stop* |
mm |
10-140 |
|
机床 |
|
|
|
机床占地面积包括排屑器 |
m2 |
- |
|
排屑器排屑高度 |
mm |
- |
|
机床高度 |
mm |
- |
|
机床重量 |
kg |
10,300 |
* Optional
- not available
控制系统 |
|
DMG MORI SLIMline®控制面板带Siemens 840D powerline，双CPU |
