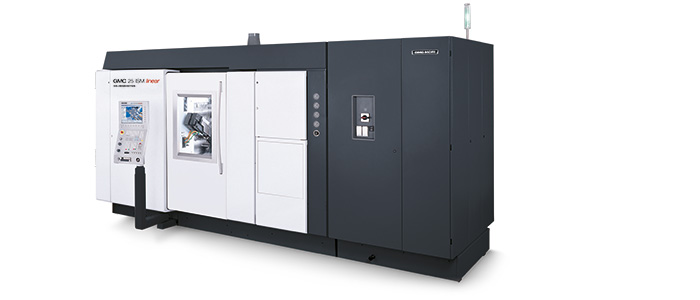

GMC 25 ISM
GMC 25 ISM
最短周期时间 –最快加速度2 g和最高快移速度50 m/min
.jpg)
不仅具有奠定全新标杆的高效技术而且生产力高和价格经济。GMC ISM系列机床设计用于满足批量生产和大批量生产的高要求。Í▒线电机驱动技术第一次用在上主轴位置4和5处，因此周期时间短，2 g的高加速度和50 m/min的快移速度。其他轴由轴电机和滚珠丝杠驱动。直线电机驱动的名义驱动力达1,450 N，有效保证高的长期精度。
Highlights GMC 25 ISM
- 市场上精度高的多主轴自动车床，精度等级H5，带Y轴和刀塔
- 标准版配双CPU：可控轴数56个，Siemens 840D powerline数控系统
- 6个内置油冷和独立转动的同步主轴电机，输出功率15 kW（100%）
- 最高快移速度50 m/min和最高加速度2 g
- 每一个主轴位置可有7个CNC数控轴
- DMG Programmer 3D Turning，编程简单（选配）

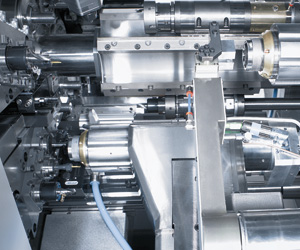

.jpg)

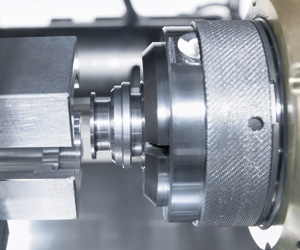

.jpg)
技术参数
GMC 25 ISM
机床型号 |
|
|
GMC 25 ISM |
|
加工区 |
|
|
|
|
Max. bar passage |
mm |
25 |
|
|
Max. bar feed / component length |
mm |
120 |
|
|
Number of main spindles |
|
6 |
|
|
主轴环直径 |
mm |
180 |
|
|
Drum switching time |
mm |
0.7 |
|
|
Main spindle |
|
|
|
|
One drive for all six main spindles with C-axis (0.001°) |
rpm |
- |
|
|
Six integrated spindle motors (ISM) with C-axis (0.001°) |
rpm |
8,000 |
|
|
Drive power / Torque (40%) |
kW // Nm |
13.7 / 20.2 |
|
|
Frontal spindle* and pickup spindle |
|
|
|
|
Separate drive for each spindle position with C-axis (0.001°) |
rpm |
6,000 |
|
|
Drive power / Torque (40%) |
kW // Nm |
15.1 / 32.5 |
|
|
Frontal machining: frontal spindle positions 1-5 |
|
|
|
|
Frontal slide travel W1-W5 (standard) |
mm |
140 |
|
|
Frontal slide travel W1-W5 (high performance)* |
mm |
- |
|
|
Acceleration W1-W5 (standard / high performance) |
m/s2 |
10 |
|
|
Rapid traverse speed W1-W5 (standard / high performance) |
m/min |
30 |
|
|
Feed power W1-W5 (standard / high performance) |
kN |
3.1 |
|
|
U-axis* travel positions 4 and 5 (positions 1 to 5 from GMC 35 ISM) |
mm |
15 |
|
|
Rear-sided machining: pickup spindle, position 6 |
|
|
|
|
Front slide travel W6 |
mm |
140 |
|
|
Acceleration W6 |
m/s2 |
10 |
|
|
Rapid traverse speed W6 |
m/min |
30 |
|
|
Feed power W6 |
kN |
3.1 |
|
|
Driven* tools |
|
|
|
|
Number of driven tool axes (multiple tools can be used) |
Number / rpm |
6 / 6,000 |
|
|
Drive power / Torque (40%) |
kW // Nm |
1.8 / 2.9 |
|
|
Radial machining: cross slides, positions 1 to 5 |
|
|
|
|
Axis travel X1, X2, X3, X4, X5 |
mm |
55 |
|
|
Axis travel Z1, Z2, Z3, Z4, Z5 |
mm |
70 |
|
|
Acceleration X1-X5 / Z1-Z5 |
m/s2 |
10 |
|
|
Rapid traverse speed X1-X5 / Z1-Z5 |
m/min |
30 |
|
|
Feed power X1-X5 / Z1-Z5 |
kN |
3.1 / 3 |
|
|
Y-axes* travel (only possible for positions 3 to 5) |
mm |
- |
|
|
Rapid traverse speed Y3-Y5 |
m/min |
- |
|
|
Feed power Y3-Y5 |
kN |
- |
|
|
Radial machining: two lateral slides, position 6 |
|
|
|
|
X6 and U6 travel |
mm |
65 |
|
|
X6 and U6 acceleration |
m/s2 |
10 |
|
|
X6 and U6 rapid traverse speed |
m/min |
30 |
|
|
X6 and U6 feed power |
kN |
1.2 |
|
|
Z6* travel |
mm |
- |
|
|
Central block |
|
|
|
|
Central block* travel W7 |
mm |
100 |
|
|
Hydraulic bar stop* |
mm |
10-140 |
|
|
机床 |
|
|
|
|
机床占地面积包括排屑器 |
m2 |
- |
|
|
排屑器排屑高度 |
mm |
- |
|
|
机床高度 |
mm |
- |
|
|
机床重量 |
kg |
10,300 |
* Option
控制系统 |
|
DMG MORI SLIMline®控制面板带Siemens 840D powerline，双CPU |
