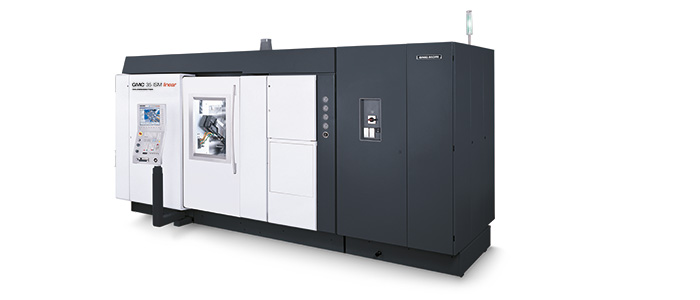

CNC数控6轴自动车床：拥有先进CNC数控技术的全部优点

GMC 35 ISM是GM系列自动车床中可加工直径35 mm的机型。由于它灵活性好和精度高，即使中等批量也能高效生产。该机新特性是两个精加工位的X轴滑座都为直线电机驱动。 GMC 35 ISM进入CNC数控多主轴机床的新领域。GMC 35 ISM的整体优势为该机提供全面生产能力，适应3-35 mm直径各种批量大小的生产要求。单分度主轴滚筒一项就能缩短周期时间。并且新开发的MF Programmer 3D软件进一步推动多主轴机床的成功。
Highlights GMC 35 ISM

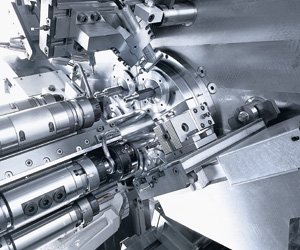

加工区与凸轮控制的机床类似，传统机床操作人员培训简单。
动态性能好和结构稳定，与机械式多主轴机床的周期时间等同。
6个带油冷独立的主轴电机
标配5个CNC复合中心架，切断刀架和背面加工刀架。
内径和外径加工精度高，公差H5
扭矩稳定的同步主电机
连续分度主轴滚筒，大限度缩短非加工时间
排屑好，通过CNC数控导向架支撑工件
DMG Programmer 3D Turning编程容易和程序无碰撞

技术参数
GMC 35 ISM

机床型号		GMC 35 ISM
加工区
Max. bar passage	mm	35
Max. bar feed / component length	mm	140
Number of main spindles		6
主轴环直径	mm	280
Drum switching time	mm	1
Main spindle
One drive for all six main spindles with C-axis (0.001°)	rpm	-
Six integrated spindle motors (ISM) with C-axis (0.001°)	rpm	6,000
Drive power / Torque (40%)	kW // Nm	18.6 / 42.7
*Frontal spindle and pickup spindle**
Separate drive for each spindle position with C-axis (0.001°)	rpm	6,000
Drive power / Torque (40%)	kW // Nm	10 / 47.8
Frontal machining: frontal spindle positions 1-5
Frontal slide travel W1-W5 (standard)	mm	180 (220)*
Frontal slide travel W1-W5 (high performance)*	mm	180
Acceleration W1-W5 (standard / high performance)	m/s2	10 / 7
Rapid traverse speed W1-W5 (standard / high performance)	m/min	30 / 21
Feed power W1-W5 (standard / high performance)	kN	3.7 / 8.5
U-axis* travel positions 4 and 5 (positions 1 to 5 from GMC 35 ISM)	mm	23
Rear-sided machining: pickup spindle, position 6
Front slide travel W6	mm	220
Acceleration W6	m/s2	10
Rapid traverse speed W6	m/min	30
Feed power W6	kN	3.7
*Driven tools**
Number of driven tool axes (multiple tools can be used)	Number / rpm	6 / 6,000
Drive power / Torque (40%)	kW // Nm	3.8 / 7
Radial machining: cross slides, positions 1 to 5
Axis travel X1, X2, X3, X4, X5	mm	80
Axis travel Z1, Z2, Z3, Z4, Z5	mm	100
Acceleration X1-X5 / Z1-Z5	m/s2	10
Rapid traverse speed X1-X5 / Z1-Z5	m/min	30
Feed power X1-X5 / Z1-Z5	kN	3.1 / 3
Y-axes* travel (only possible for positions 3 to 5)	mm	35
Rapid traverse speed Y3-Y5	m/min	15
Feed power Y3-Y5	m/min	1.7
Radial machining: two lateral slides, position 6
X6 and U6 travel	mm	120
X6 and U6 acceleration	m/s2	10
X6 and U6 rapid traverse speed	m/min	30
X6 and U6 feed power	kN	1.2
Z6* travel	mm	4
Central block
Central block* travel W7	mm	100
Hydraulic bar stop*	mm	18-254
机床
机床占地面积包括排屑器	m2	-
排屑器排屑高度	mm	-
机床高度	mm	-
机床重量	kg	13,100

* Optional

控制系统

DMG MORI SLIMline®控制面板带Siemens 840D powerline，双CPU
