多主轴自动车床，设置时间缩短65%，成本低和精度高
.jpg)

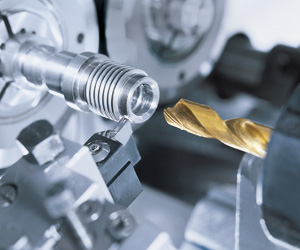

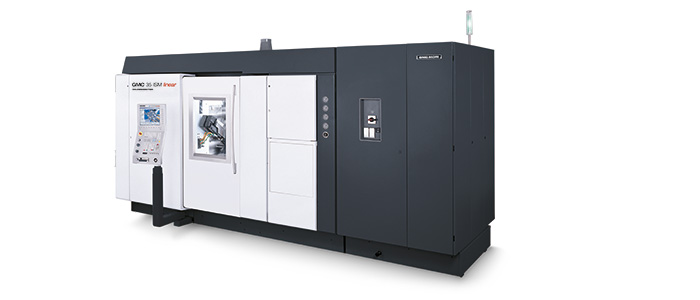

CNC数控多主轴型车床，单CPU可控制10个CNC数控通道和31个CNC数控轴，带来高产能，短节拍时间低的投资额。5个径向刀架，6个正面刀架和2个背面加工的CNC数控刀架，拥有高加工灵活性，适合中等批量复杂工件加工。
GMC 35工件（CpK）测试可达1.67（h6直径）并显著降低机床整个生命周期中的成本。
Highlights GMC 35
- 相对凸轮控制的车床，刀具调整时间缩短65 %
- 最大棒料规格35 mm
- CNC数控多主轴车床中生产力最高机型
- 维护成本低 – 用机械方式取代传统凸轮和特殊刀具
- 机床配置适合用于中等批量复杂零件生产，投资成本低
- 高精度（CpK：h6为1.67）
- 主轴鼓端面鼠牙盘分度定位
- 除5个径向刀架外，还可安装背面加工的刀架和正面刀架
- 可选配：独立控制的正面刀架刀塔，正面铣削/径向钻孔/多头螺纹铣削刀座和一个U轴

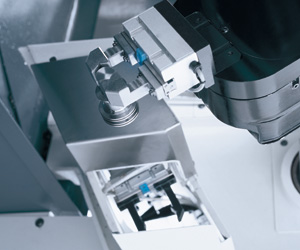

.jpg)
.jpg)
技术参数
GMC 35
|
机床型号 |
|
GMC 35 |
|
加工区 |
|
|
|
Max. bar passage |
mm |
35 |
|
Max. bar feed / component length |
mm |
140 |
|
Number of main spindles |
|
6 |
|
主轴环直径 |
mm |
280 |
|
Drum switching time |
mm |
1 |
|
Main spindle |
|
|
|
One drive for all six main spindles with C-axis (0.001°) |
rpm |
6,000 |
|
Six integrated spindle motors (ISM) with C-axis (0.001°) |
rpm |
- |
|
Drive power / Torque (40%) |
kW // Nm |
25 / 238.9 |
|
Frontal spindle* and pickup spindle |
|
|
|
Separate drive for each spindle position with C-axis (0.001°) |
rpm |
6,000 |
|
Drive power / Torque (40%) |
kW // Nm |
10 / 47.8 |
|
Frontal machining: frontal spindle positions 1-5 |
|
|
|
Frontal slide travel W1-W5 (standard) |
mm |
180 (220)* |
|
Frontal slide travel W1-W5 (high performance)* |
mm |
- |
|
Acceleration W1-W5 (standard / high performance) |
m/s2 |
10 |
|
Rapid traverse speed W1-W5 (standard / high performance) |
m/min |
30 |
|
Feed power W1-W5 (standard / high performance) |
kN |
3.7 |
|
U-axis* travel positions 4 and 5 (positions 1 to 5 from GMC 35 ISM) |
mm |
23 |
|
Rear-sided machining: pickup spindle, position 6 |
|
|
|
Front slide travel W6 |
mm |
220 |
|
Acceleration W6 |
m/s2 |
10 |
|
Rapid traverse speed W6 |
m/min |
30 |
|
Feed power W6 |
kN |
3.7 |
|
Driven* tools |
|
|
|
Number of driven tool axes (multiple tools can be used) |
Number / rpm |
5 / 6,000 |
|
Drive power / Torque (40%) |
kW // Nm |
3.8 / 7 |
|
Radial machining: cross slides, positions 1 to 5 |
|
|
|
Axis travel X1, X2, X3, X4, X5 |
mm |
80 |
|
Axis travel Z1, Z2, Z3, Z4, Z5 |
mm |
100 |
|
Acceleration X1-X5 / Z1-Z5 |
m/s2 |
10 |
|
Rapid traverse speed X1-X5 / Z1-Z5 |
m/min |
30 |
|
Feed power X1-X5 / Z1-Z5 |
kN |
3.1 / 3 |
|
Y-axes* travel (only possible for positions 3 to 5) |
mm |
- |
|
Rapid traverse speed Y3-Y5 |
m/min |
- |
|
Feed power Y3-Y5 |
kN |
- |
|
Radial machining: two lateral slides, position 6 |
|
|
|
X6 and U6 travel |
mm |
120 |
|
X6 and U6 acceleration |
m/s2 |
10 |
|
X6 and U6 rapid traverse speed |
m/min |
30 |
|
X6 and U6 feed power |
kN |
1.2 |
|
Z6* travel |
mm |
- |
|
Central block |
|
|
|
Central block* travel W7 |
mm |
100 |
|
Hydraulic bar stop* |
mm |
18-254 |
|
机床 |
|
|
|
机床占地面积包括排屑器 |
m2 |
- |
|
排屑器排屑高度 |
mm |
- |
|
机床高度 |
mm |
- |
|
机床重量 |
kg |
13,000 |
* Option
控制系统 |
|
DMG MORI SLIMline®控制面板带Siemens 840D powerline，双CPU |
