CTX alpha 300

CTX alpha 300

CTX alpha 300

性能提高25%

dmg-mori-technology-cycles-turning teaser Picture
CTX Alpha 300

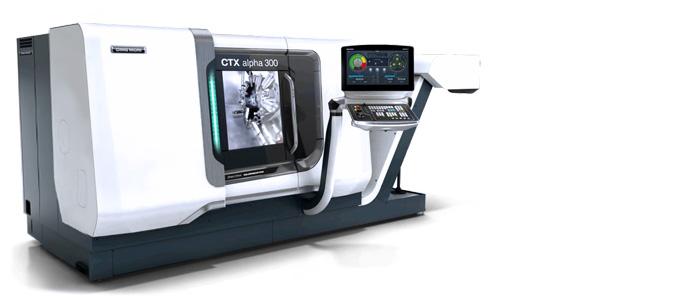

第5代新CTX系列车床功率更大,扭矩更大和精度更高。加工区更大,灵活性更好和人机更友好。GILDEMEISTER的CTX系列全新万能车床为全新风格设计,采用高科技部件制造,例如一体化的电主轴,加速度大和减速快。标配动力驱动刀和尾座。选配Y轴,灵活性更好

Highlights CTX alpha 300

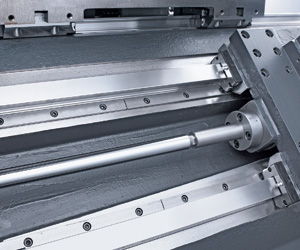

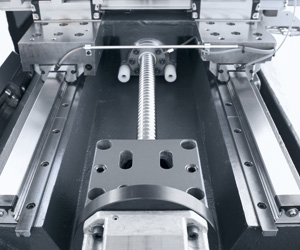

  • 坚固锲形滑座结构的Y轴(选配)

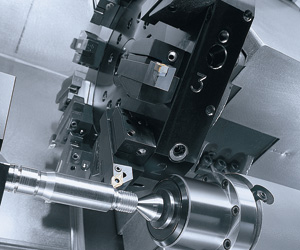

  • TRIFIX©高精度刀具接口,换刀速度快精度高,稳定性更好:
    • VDI兼容性:VDI 30标准刀具系统,可用VDI夹刀

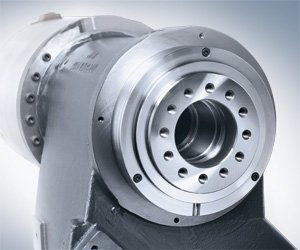

  • 直接驱动技术(选配),性能更强和加工精度更高:
    • 为强力切削提供更高速度和更高性能(最高转速10,000 rpm)
    • 工作更平稳和温度特性更稳定,因此加工精度更高
  • 选配16位刀塔

切槽和切断。刀刃精度和加工能力

无论加工哪种合金材质,Horn总能提供创新的解决方案。高效,经济,高精度;完成完美加工过程所需的个性化解决方案。

  •
  • ctx-alpha-300-h1-jpg
  • ctx-alpha-300-h2-jpg
  • ctx-alpha-300-h3-jpg
  • ctx-alpha-300-h4-jpg


ctx-horn-toolbox-jpg

技术参数
CTX alpha 300

机床型号


机床型号



CTX alpha 300

加工区





Swing diameter, max.

mm

500



Turning diameter, max.

mm

200



Distance between the spindle and the tail stock (without feed)

mm

520



Max. work piece length with a tailstock (can be machined)

mm

335



Distance from the main spindle to the counter spindle (without feed)

mm

-



Max. work piece length on the counter spindle (can be machined)

mm

-



Main spindle







Integrated motor spindle (ISM) with a C-axis (0,001°)

rpm

6,000 (ISM 52)



驱动功率(40% / 100% DC)

kW

20 / 15



扭矩(40/100% DC)

Nm

127 / 95



Spindle head (flat flange)

mm

140 h5



Spindle diameter in the front bearing

mm

100



Clamping tube inner diameter

mm

52



Max. collet chuck diameter*

mm

215



Counter spindle*







Integrated motor spindle (ISM) with a C-axis (0,001°)

rpm

-



驱动功率(40% / 100% DC)

kW

-



扭矩,最大(40/100% DC)





Spindle head (flat flange)

mm

-



Spindle diameter in the front bearing

mm

-



Clamping tube inner diameter

mm

-



Max. collet chuck diameter*

mm

-



Turret (standard)







Tool holder according to VDI / DIN 69880

mm

12 x VDI 30



Number of driven tools / Max. speed

rpm

12 / 5,000



Drive power / Torque (40%)

kW // Nm

5.4 / 18



Switching time, 30°

Sec.

0.4



Turret slide (top) with a tailstock







X / Y* / Z

mm

190 / ±40 / 335



快移速度(X/Y/Z)

m/min

30 / 22.5 / 30



进给力 (X/Y/Z)

kN

2.8 / 2.8 / 5.6



Turret slide (top) on the counter spindle







X / Y* / Z

mm

-



快移速度(X/Y/Z)

m/min

-



进给力 (X/Y/Z)

kN

-



副主轴刀架







X / Z

mm

-



快移速度X / Z

m/min

-



Feed force X / Z

kN

-



Tailstock







行程(液压)

mm

370



kN

6



Centre location

MT

4











机床重量

kg

4,350
