CTX beta 500 linear

CTX beta 500 linear

CTX beta 500 linear

全新CTX系列模块式结构

http://cn.dmgmori.com/blob/116886/64d8933d1af14c593bf112c20ce91eab/trifix-picture-data.jpg
dmg-mori-technology-cycles-turning teaser Picture
http://cn.dmgmori.com/blob/115970/383c251e6fafeeff10dc555b858943a1/linear-drive-silver-picture-data.jpg

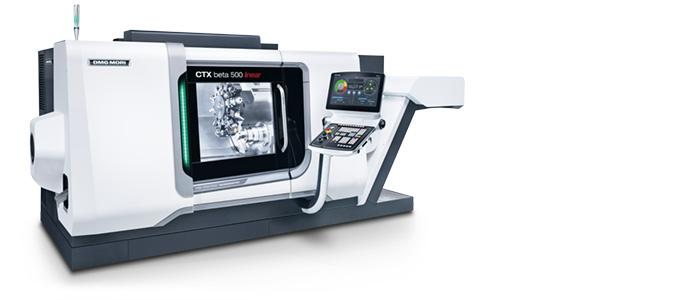

CTX Beta 500 linear
CTX系列车床也是智能化的模块式结构,方便用户配置所需万能车床。从带高速刀塔的单主轴卡盘机床到带副主轴和Y轴完整加工的配置,提供充分加工灵活性。由于该机部件性能提高了25 %,该系列机床特别适用于重型棒料,盘件和轴件加工

Highlights CTX beta 500 linear

  • 数字驱动技术的加工精度高和一体化主轴电机使该机动态性能好
  • CTX beta采用绝对式位置传感器(不需要参考点回零):尾座 / 动力驱动刀具和C轴(标配)
  • Y轴和副主轴(选配)
  • 模块式结构,易扩展,从各规格尺寸的万能车削扩展到完整加工
  • 带水冷主轴电机
  • 根据加工任务需要,选择较好刀具数量(12,16)
  • 应用范围广 -轴行程大,车削直径大和扭矩大
  • 性能稳定性好和使用寿命长 –Y轴刚性好,切削性能好

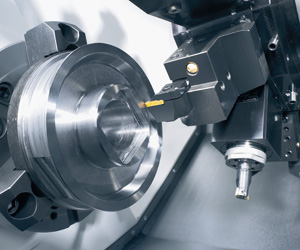

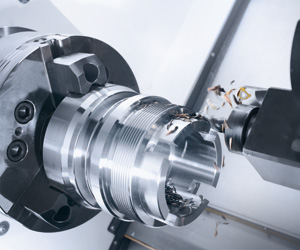

切槽和切断。刀刃精度和加工能力

无论加工哪种合金材质,Horn总能提供创新的解决方案。高效,经济,高精度;完成完美加工过程所需的个性化解决方案。

  •
  • ctx-beta-500-linear-h1-jpg
  • ctx-beta-500-linear-h2-jpg

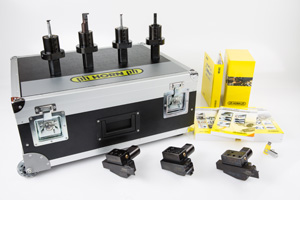

ctx-horn-toolbox-jpg
技术参数
CTX beta 500 linear

机床型号



CTX beta 500 linear



加工区





Swing diameter, max.

mm

700



Turning diameter, max.

mm

410



Distance between the spindle and the tail stock (without feed)

mm

675



Max. work piece length with a tailstock (can be machined)

mm

550



Distance from the main spindle to the counter spindle (without feed)

mm

720



Max. work piece length on the counter spindle (can be machined)

mm

500



Main spindle







Integrated motor spindle (ISM) with a C-axis (0,001°)

rpm

5,000 (ISM 76)



驱动功率(40% / 100% DC)

kW (AC)

34 / 25



扭矩(40/100% DC)

Nm

380 / 280



Spindle head (flat flange)

mm

170h5



Spindle diameter in the front bearing

mm

130



Clamping tube inner diameter

mm

67 (77)*



Max. collet chuck diameter*

mm

320



Counter spindle*







Integrated motor spindle (ISM) with a C-axis (0,001°)

rpm

140h5 | (170h5)*



驱动功率(40% / 100% DC)

kW (AC)

20 / 15 | (32 / 25)*



扭矩(40/100% DC)

mm

127 / 95 | (360 / 280)*



Spindle head (flat flange)

mm

140h5 | (170h5)*



Spindle diameter in the front bearing

mm

100 | (130)*



Clamping tube inner diameter

mm

52



Max. collet chuck diameter*

mm

215



Turret (standard)







Tool holder according to VDI / DIN 69880

mm

12 x VDI 40 + 6 Blocktool



Number of driven tools / Max. speed

rpm

12 / 4,000



Drive power / Torque (40%)

kW // Nm

11.3 / 28



Switching time, 30°

Sec.

0.4



Turret slide (top) with a tailstock







X / Y / Z

mm

300 / ±60 / 550



快移速度X/Y/Z轴

m/min

60 / 22.5 / 30



进给力 (X/Y/Z)

kN

5.6 / 5.6 / 7.4



Turret slide (top) on the counter spindle







X / Y / Z

mm

300 / ±60 / 500



快移速度X/Y/Z轴

m/min

60 /22.5 / 30



进给力 (X/Y/Z)

kN

5.6 / 5.6 / 7.4



副主轴刀架







X / Z

mm

- / 500



快移速度X / Z

m/min

- / 30



Feed force X / Z

kN

- / 7.4



Tailstock







行程(液压)

mm

500



kN

8



Centre location

MT

5











机床重量

kg

5,000
