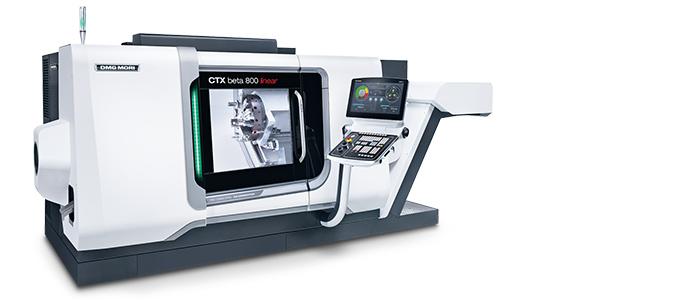

CTX beta 800 linear
CTX beta 800 linear
大加工区中的高精度车削
.jpg)
.jpg)
.jpg)
.jpg)

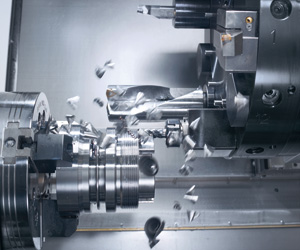

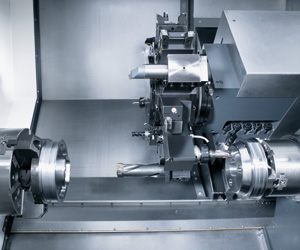

CTX系列定义了万能车削领域的全新标准，创新的结构设计使该机稳居同类产品的领先地位。优化的结构设计实现更大加工区，而且无需增加机床占地面积。它增加的空间进一步扩充了该机功能，使该机能加工更大直径工件和更有效排屑。
Highlights CTX beta 800 linear
- 数字驱动技术的加工精度高和一体化主轴电机使该机动态性能好
- CTX beta采用绝对式位置传感器（不需要参考点回零）:尾座 / 动力驱动刀具和C轴（标配）
- Y轴和副主轴（选配）
- 模块式结构，易扩展，从各规格尺寸的万能车削扩展到完整加工
- 带水冷主轴电机
- 根据加工任务需要，选择较好刀具数量（12，16）
- 应用范围广 -轴行程大，车削直径大和扭矩大
- 性能稳定性好和使用寿命长 –Y轴刚性好，切削性能好

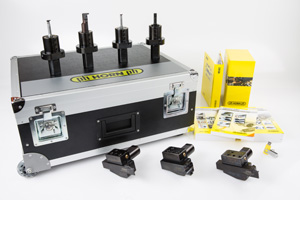

切槽和切断。刀刃精度和加工能力
无论加工哪种合金材质，Horn总能提供创新的解决方案。高效，经济，高精度；完成完美加工过程所需的个性化解决方案。
.jpg)
.jpg)
.jpg)
.jpg)
技术参数
CTX beta 800 linear
|
机床型号 |
|
CTX beta 800 linear |
|
加工区 |
|
|
|
Swing diameter, max. |
mm |
700 |
|
Turning diameter, max. |
mm |
410 |
|
Distance between the spindle and the tail stock (without feed) |
mm |
975 |
|
Max. work piece length with a tailstock (can be machined) |
mm |
850 |
|
Distance from the main spindle to the counter spindle (without feed) |
mm |
1,020 |
|
Max. work piece length on the counter spindle (can be machined) |
mm |
800 |
|
Main spindle |
|
|
|
Integrated motor spindle (ISM) with a C-axis (0,001°) |
rpm |
5,000 (ISM 76) |
|
驱动功率（40% / 100% DC） |
kW (AC) |
34 / 25 |
|
扭矩（40/100% DC） |
Nm |
380 / 280 |
|
Spindle head (flat flange) |
mm |
170 h5 |
|
Spindle diameter in the front bearing |
mm |
130 |
|
Clamping tube inner diameter |
mm |
67 (77)* |
|
Max. collet chuck diameter* |
mm |
320 |
|
Counter spindle* |
|
|
|
Integrated motor spindle (ISM) with a C-axis (0,001°) |
rpm |
6,000 (ISM 52) |
|
驱动功率（40% / 100% DC） |
kW (AC) |
20 / 15 |
|
扭矩（40/100% DC） |
mm |
127 / 95 |
|
Spindle head (flat flange) |
mm |
140 h5 |
|
Spindle diameter in the front bearing |
mm |
100 |
|
Clamping tube inner diameter |
mm |
52 |
|
Max. collet chuck diameter* |
mm |
215 |
|

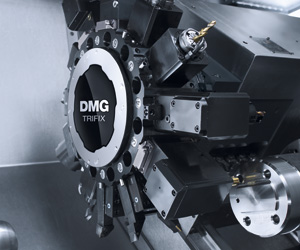

Turret (standard) |
|
|
|
Tool holder according to VDI / DIN 69880 |
mm |
12 x VDI 40 + Blocktool |
|
Number of driven tools / Max. speed |
rpm |
12 / 4,000 |
|
Drive power / Torque (40%) |
kW // Nm |
11.3 / 28 |
|
Switching time, 30° |
Sec. |
0.4 |
|
Turret slide (top) with a tailstock |
|
|
|
X / Y / Z |
mm |
300 / ±60 / 855 |
|
快移速度X/Y/Z轴 |
m/min |
60 / 22.5 / 30 |
|
进给力 (X/Y/Z) |
kN |
5.6 / 5.6 / 7.4 |
|
Turret slide (top) on the counter spindle |
|
|
|
X / Y / Z |
mm |
300 / ±60 / 800 |
|
快移速度X/Y/Z轴 |
m/min |
60 /22.5 /30 |
|
进给力 (X/Y/Z) |
kN |
5.6 / 5.6 / 7.4 |
|
副主轴刀架 |
|
|
|
X / Z |
mm |
- / 800 |
|
快移速度X / Z |
m/min |
- / 30 |
|
Feed force X / Z |
kN |
- / 7.4 |
|
Tailstock |
|
|
|
行程（液压） |
mm |
800 |
|
力 |
kN |
8 |
|
Centre location |
MT |
5 |
|
|
|
|
|
机床重量 |
kg |
6,100 |
