CTX beta 1250 linear

CTX beta 1250 linear

CTX beta 1250 linear

各规格尺寸完整加工的成功应用

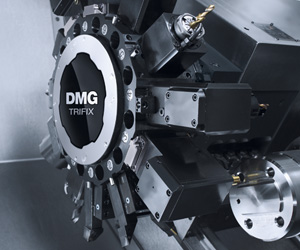

http://cn.dmgmori.com/blob/116886/64d8933d1af14c593bf112c20ce91eab/trifix-picture-data.jpg
dmg-mori-technology-cycles-turning teaser Picture
http://cn.dmgmori.com/blob/115970/383c251e6fafeeff10dc555b858943a1/linear-drive-silver-picture-data.jpg
CTX Beta 1250 linear
CTX系列车床也是智能化的模块式结构,方便用户配置所需万能车床。从带高速刀塔的单主轴卡盘机床到带副主轴和Y轴完整加工的配置,提供充分加工灵活性。由于该机部件性能提高了25 %,该系列机床特别适用于重型棒料,盘件和轴件加工。

Highlights CTX beta 1250 linear

  • 数字驱动技术,加工精度高和一体化主轴电机使该机动态性能好
  • CTX beta采用绝对式位置传感器(不需要参考点回零):尾座 / 动力驱动刀具和C轴(标配)
  • Y轴和副主轴(选配)
  • 模块式结构,易扩展,从各规格尺寸的万能车削扩展到完整加工
  • 带水冷主轴电机
  • 根据加工任务需要,选择较好刀具数量(12,16)
  • 应用范围广 -轴行程大,车削直径大和扭矩大
  • 性能稳定性好和使用寿命长 –Y轴刚性好,切削性能好

切槽和切断。刀刃精度和加工能力

无论加工哪种合金材质,Horn总能提供创新的解决方案。高效,经济,高精度;完成完美加工过程所需的个性化解决方案。

  •

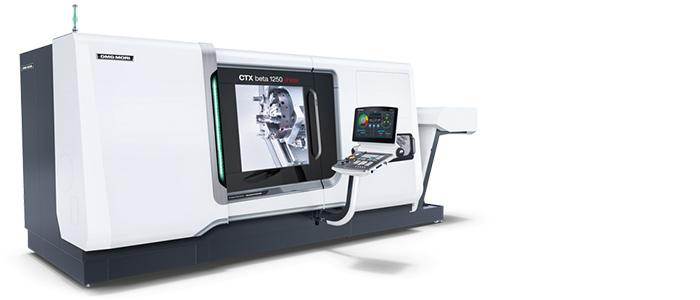

  • ctx-beta-1250-linear-h1-jpg
    ctx-horn-toolbox-jpg

机床型号



CTX beta 1250 linear

加工区





Swing diameter, max.

mm

700

Turning diameter, max.

mm

410

Distance between the spindle and the tail stock (without feed)

mm

1,379

Max. work piece length with a tailstock (can be machined)

mm

1,300

Distance from the main spindle to the counter spindle (without feed)

mm

1,470

Max. work piece length on the counter spindle (can be machined)

mm

1,200

Main spindle





Integrated motor spindle (ISM) with a C-axis (0,001°)

rpm

4,000 ( ISM 102)

驱动功率(40% / 100% DC)

kW (AC)

45 / 35

扭矩(40/100% DC)

Nm

770 / 600

Spindle head (flat flange)

mm

220 h5

Spindle diameter in the front bearing

mm

160

Clamping tube inner diameter

mm

95 (104)*

Max. collet chuck diameter*

mm

400

Counter spindle*





Integrated motor spindle (ISM) with a C-axis (0,001°)

rpm

6,000 (ISM 52)

驱动功率(40% / 100% DC)

kW (AC)

20 / 15

扭矩(40/100% DC)

mm

127 / 95

Spindle head (flat flange)

mm

140 h5

Spindle diameter in the front bearing

mm

100

Clamping tube inner diameter

mm

52

Max. collet chuck diameter*

mm

215

Turret (standard)





Tool holder according to VDI / DIN 69880

mm

12 x VDI 40 + 6 Blocktool

Number of driven tools / Max. speed

rpm

12 / 4,000

Drive power / Torque (40%)

kW // Nm

11.3 / 28

Switching time, 30°

Sec.

0.4

Turret slide (top) with a tailstock





X / Y / Z

mm

300 / ±60 / 1,300

快移速度X/Y/Z轴

m/min

60 / 22.5 / 30

进给力 (X/Y/Z)

kN

5.6 / 5.6 / 7.4

Turret slide (top) on the counter spindle





X / Y / Z

mm

300 / ±60 / 1,200

快移速度X/Y/Z轴

m/min

60 / 22.5 / 30

进给力 (X/Y/Z)

kN

5.6 / 5.6 / 7.4

副主轴刀架





X / Z

mm

- / 1,200

快移速度X / Z

m/min

- / 30

Feed force X / Z

kN

- / 7.4

Tailstock





行程(液压)

mm

1,250

kN

12

Centre location

MT

5







机床重量

kg

7,650
