CTX beta 2000

CTX beta 2000

CTX beta 2000

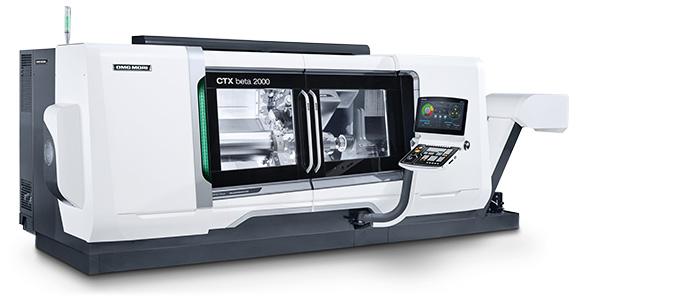

高端万能车床,大工件直径600 mm和工件长度2,000 mm

direct-drive-silver-Picture
shopturn-3g-Picture
http://cn.dmgmori.com/blob/116886/64d8933d1af14c593bf112c20ce91eab/trifix-picture-data.jpg
CTX Beta 2000 linear
全新风格设计机型是大获成功且超过300台销售记录的CTX 620型的新机型,并在多个重要方面得到加强。主要改进在加工区,主轴和刀塔方面。例如,全部机型配置的车削直径现在是600 mm和车削长度是2,000 mm。X轴行程为415 mm,同时选配的Y轴行程为+/- 75 mm,并继续提供500 mm的卡盘。此外,棒料尺寸为93 mm(选配102 mm),因此可加工更大直径的棒料。

Highlights CTX beta 2000

  • 高持续精度:X轴直接位置测量系统和直线驱动(选配)
  • 标配机型的主轴为ISM102,4,000 rpm,45 kW和770 Nm,选配ISM102 plus,2,500 rpm,52 kW和2,200 Nm

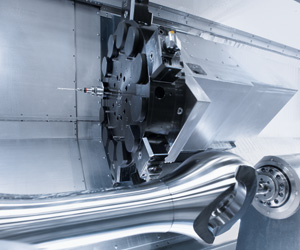

  • 12刀位VDI50刀塔,配4,000 rpm和85 Nm扭矩,6个方刀位,高稳定性;也可提供16刀位VDI40刀塔

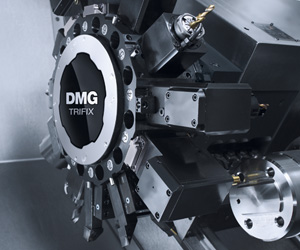

  • 直接驱动技术的刀塔(选配),10,000 rpm和34 Nm, 配TRIFIX高精度快速换刀系统(通过齿轮减速后扭矩可达160Nm)

切槽和切断。刀刃精度和加工能力

无论加工哪种合金材质,Horn总能提供创新的解决方案。高效,经济,高精度;完成完美加工过程所需的个性化解决方案。

  •
  • ctx-gamma-2000-linear-h1-jpg
  • ctx-gamma-2000-linear-h2-jpg
    http://cn.dmgmori.com/blob/18052/a3d192dbd53277181eba5343103725c4/rarrow1-data.gifctx-horn-toolbox-jpg

机床型号



CTX beta 2000

加工区





Swing diameter, max.

mm

800

Turning diameter, max.

mm

600

Distance between the spindle and the tail stock (without feed)

mm

2,285

Max. work piece length with a tailstock (can be machined)

mm

2,000

Distance from the main spindle to the counter spindle (without feed)

mm

-

Max. work piece length on the counter spindle (can be machined)

mm

-

Main spindle





Integrated motor spindle (ISM) with a C-axis (0,001°)

rpm

4,000 (ISM 102)

驱动功率(40% / 100% DC)

kW (AC)

45 / 35

扭矩(40/100% DC)

Nm

770 / 600

Spindle head (flat flange)

mm

220 h5

Spindle diameter in the front bearing

mm

160

Clamping tube inner diameter

mm

104 (111)*

Max. collet chuck diameter*

mm

500

Counter spindle*





Integrated motor spindle (ISM) with a C-axis (0,001°)

rpm

-

驱动功率(40% / 100% DC)

kW (AC)

-

扭矩(40/100% DC)

mm

Spindle head (flat flange)

mm

-

Spindle diameter in the front bearing

mm

-

Clamping tube inner diameter

mm

-

Max. collet chuck diameter*

mm

-

Turret (standard)





Tool holder according to VDI / DIN 69880

mm

12 x VDI 50 + 6 Blocktool

Number of driven tools / Max. speed

rpm

12 / 4,000

Drive power / Torque (40%)

kW // Nm

12.5 / 85 (25% DC)

Switching time, 30°

Sec.

0.44

Turret slide (top) with a tailstock





X / Y / Z

mm

快移速度X/Y/Z轴

m/min

进给力 (X/Y/Z)

kN

7.5 / 7.5 / 10

Turret slide (top) on the counter spindle





X / Y / Z

mm

快移速度X/Y/Z轴

m/min

进给力 (X/Y/Z)

kN

-

副主轴刀架





X / Z

mm

-

快移速度X / Z

m/min

-

Feed force X / Z

kN

-

Tailstock





行程(液压)

mm

2,025 trailed (NC cont.)

kN

18

Centre location

MT

5







机床重量

kg

10,000
